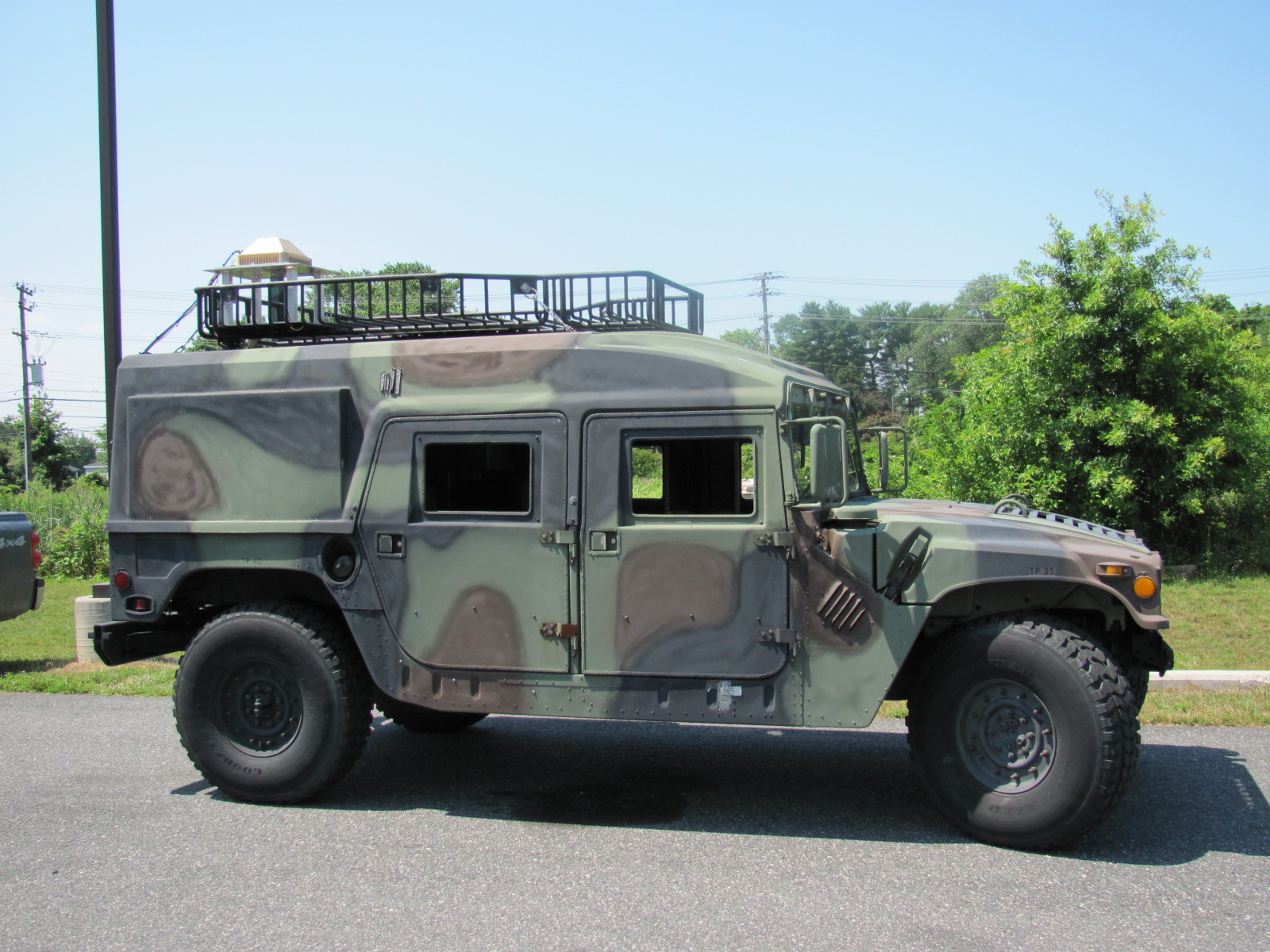

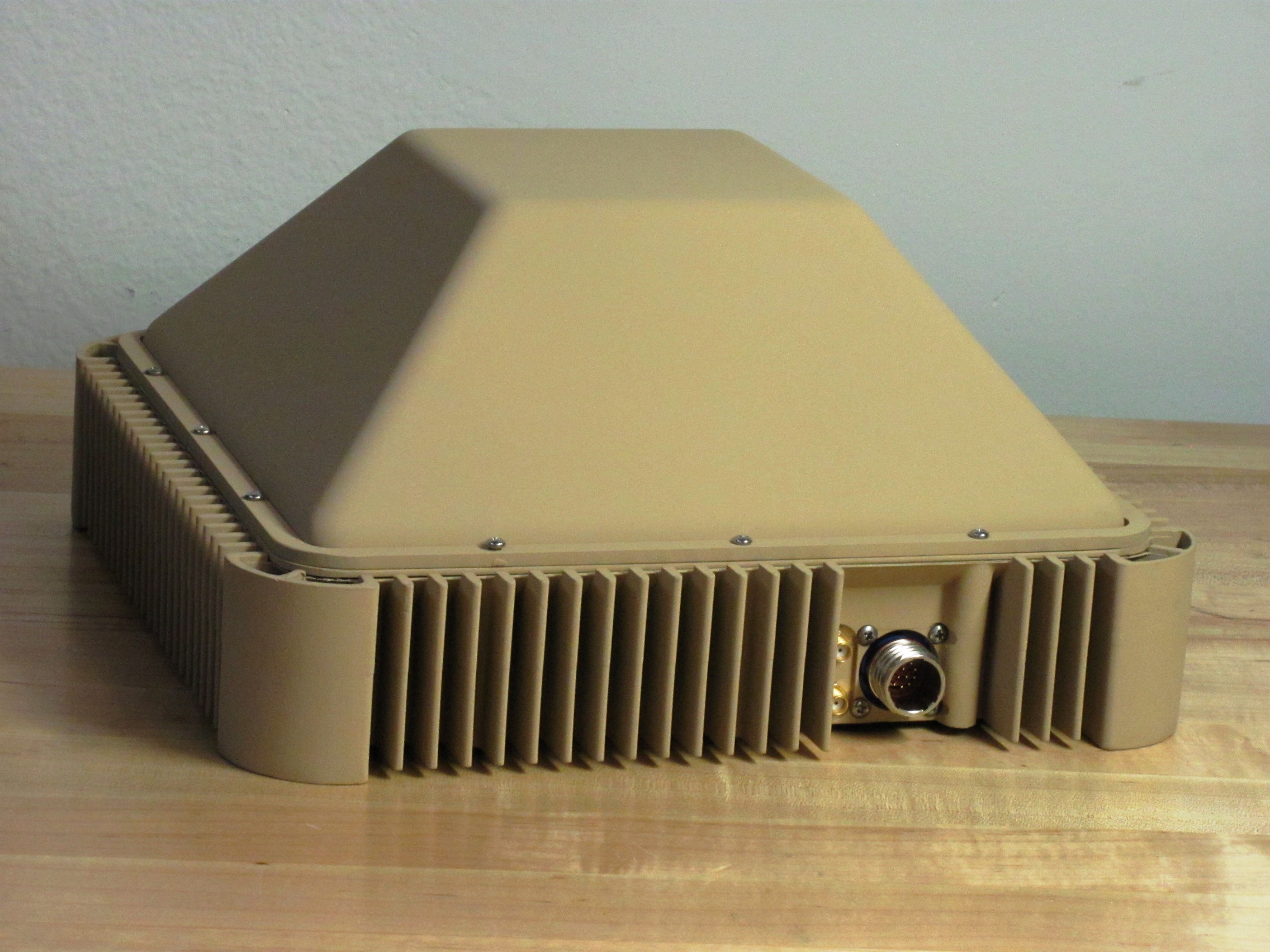

SATCOM On-The-Move Terminals
Alico's Broadband Distributed Aperture SATCOM On the Move Terminal
|
|
-
World's First Distributed Aperture X-band SATCOM On The Move Terminal
-
Phase array all electronic antenna system
-
Full hemispheric coverage
-
Modem agnostic with L-band IF interface
-
Performance 512 to 1024 Kbps Downlink, 512 to 1536 Kbps
Uplink
-
Eliminates blockage from vehicle based
obstructions
-
No gimbal lock or key hole issues
-
Ku-band design in process
|
RF Products
Synthesized RF
Transceiver and Integrated Digital Beacon Receiver
 |
|
Alico Systems is introducing a OEM version
embeddable state of the art synthesized X-band Up/Down Frequency Converter with an
integrated satellite beacon receiver. The unit provides dual channel
digitally tunable down converters from X-band (7250-7750 MHz) to L-band IF
(950-1450 MHz), a single channel tunable up converter from L-band (950-1450
MHz) to X-band (7900-8400 MHz), and a integrated tunable satellite beacon receiver with digital
beacon acquisition and reception capability. Ruggedized design to meet system
level MIL-STD-810G requirements with excellent phase noise and stability
characteristics designed to meet MIL-STD-188-164B requirements. Interfaces
include RF In/Out, IF In/Out, Ethernet, Single voltage 24-48 VDC power option.
Ethernet based provisioning and monitoring/control interface and a standard web
browser based graphical user interface.
Options include GPS receiver, motion
sensors and software defined radio OMAP/Xilinx FPGA front end for hosting a
embeddable modem waveform. Also available in a sealed connectorized module or 1U
rack mount chassis.
Standard OEM version available for delivery 60 days after receipt of order.
|
Motion Sensor
Platforms
 |
|
Alico
Systems is introducing
Kinetic 3500
(see data sheet)
– The turn-key embedded development kit based on open-source software for Texas
Instrument's
OMAP3530
processor. Equipped with working applications and software drivers for
onboard peripherals, Kinetic 3500 allows developers to focus time and resources
on development of product differentiation features. This reduces time learning
the fundamentals of OMAP, writing basic software drivers, or getting up to speed
on information about open source software. The kit is integrated with standard
peripheral interfaces, GPS, gyroscope, magnetometer, accelerometer, and
temperature sensors, enabling immediate evaluation and development of OMAP’s
applications. The robust Web based GUI provides extensive diagnostic and
configuration capabilities. The onboard
Xilinx Spartan-6 FPGA gives developers the capability to
implement custom hardware functionality and signal processing algorithms without
actual hardware redesign. Flexibility and rapid prototyping offered by the FPGA
provide added benefits to the overall product development cycle including
minimal redesign of hardware, faster time-to-market, and field upgrades. Alico
Kinetic 3500 is an ideal platform for early and rapid prototyping.
Kinetics3500 is based
on the proven
LogicPD Torpedo SOM module.
Kinetic 3500 Press Article:
A to Z of Sensors
|
|
|
(used with Kinetec3500 Sensor & Signal Processing Development Kit) |
|
Alico's
GrayFox 3500 (see
data sheet) Software Subscription provides production quality source code software drivers
for the sensory components including accelerometer, gyroscope, magnetometer,
temperature sensor, GPS, as well as OMAP general I/O interfaces like USB, I2C,
SPI, and GPIO. GrayFox 3500 also comes with a web server that can deliver system
information when queried by a standard web browser. The Web Server toolkits with
source code for the web server and utilities for customize web page creation.
|
Broadband Terrestrial Wireless

Optima Series
Freedom Series
 |
|
Alico Systems commercial offering includes 802.11b/g,
and 802.11a
line of broadband products. Born from years of development experience for the
military, our license-free products bring the same stringent performance and
quality standards to the commercial broadband and WiFi arena. Our line of
commercial products provide high performance point-to-point, point-to-multipoint
and mobile broadband wireless systems in the 2.4 GHz & 5.8 GHz spectrum.
Alico Systems delivers high performance, high power,
point-to-point, point-to-multipoint and mesh broadband wireless products in the
2.4 GHz & 5.8 GHz spectrum. Our products support 802.11b, 802.11g, 802.11a
and proprietary high performance polling and streaming protocols.

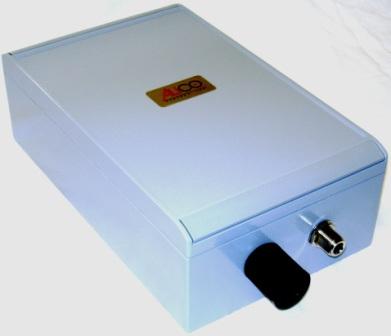

We offer two packaging options for indoor or outdoor
installation. Our Optima Series offers a ruggedized integrated
antenna-radio-router combination, whereas our Freedom Series provides the
flexibility of using an external antenna in a NEMA IV cast aluminum case. Either
package can be configured as an Access Point, Bridge (requires 2 units), Client,
or Mesh node.
|
Point to Multi-Point Broadband Wireless Networking
Equipment
Point to Point Broadband Wireless Networking Equipment
Mesh Broadband Wireless Networking Equipment
|
